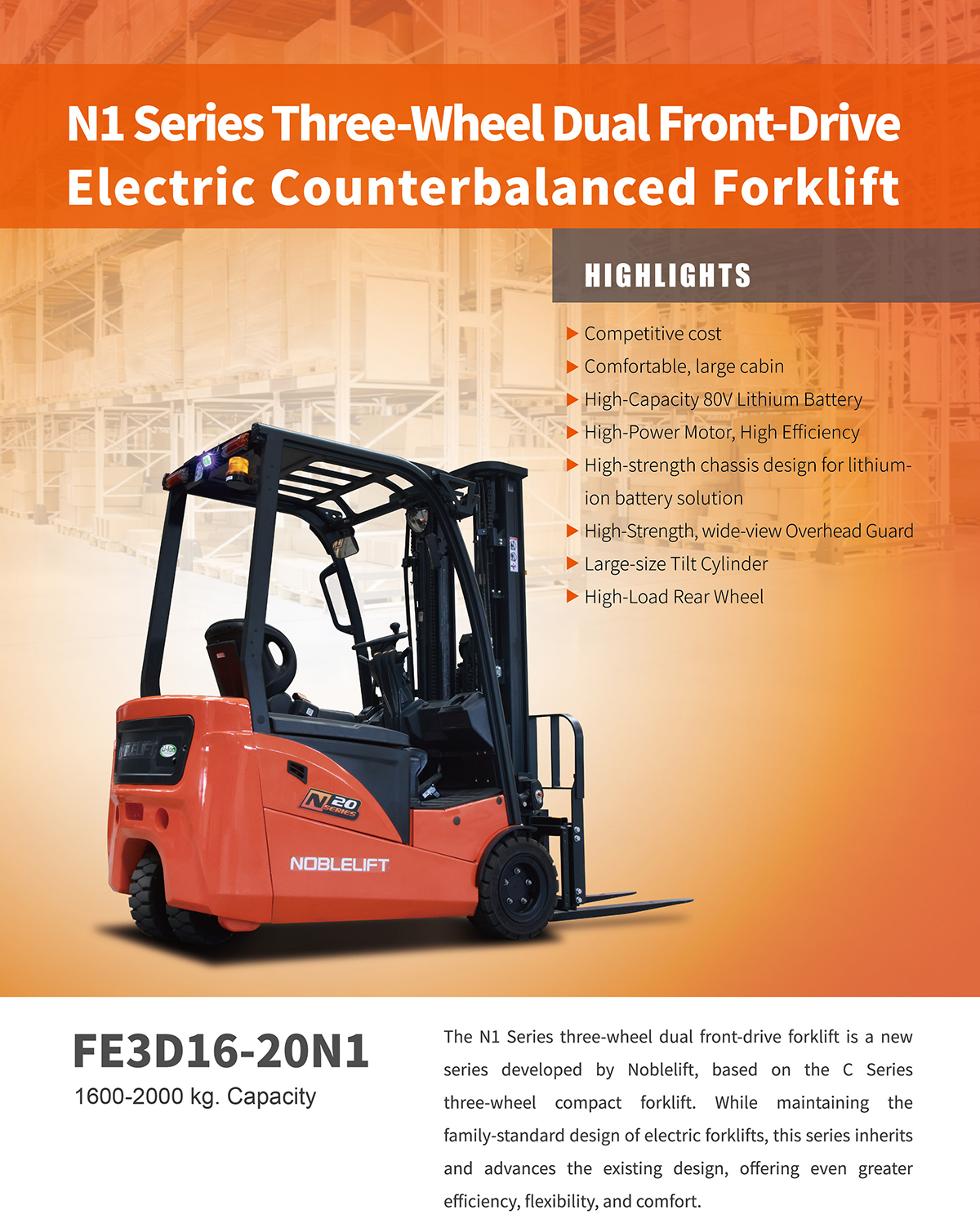

FE3D16/18/20N1
Description
Description Parameter Manufacturer's type designation FE3D16N1FE3D18N1FE3D20N1Load capacity/rated loadQ（kg）160018002000Service weight incl. batterykg308032003400lowered mast height mm199519951995Free lift mm120120120Overall length mm292530803080Overall width mm108410841145Fork dimensions (s/e/l)mm35/100/92040/100/107040/100/1070Turning radius mm162016201620Travel speed,laden/unladenkm/h15 / 1515 / 1515 / 15Max.Gradient performance,laden/unladen%15 / 2015 / 2015 / 20Battery voltage,nominal capacity K5 V/Ah Lion：76.8/150（277/412）
Read more
Finance the purchase of this product
with
Speak with an advisor now
Speak with an advisor now
Available listings
-
TCR Logismaq
Inquire
Available for financing
Product description
Description
Parameter
| Manufacturer's type designation | FE3D16N1 | FE3D18N1 | FE3D20N1 | |
| Load capacity/rated load | Q（kg） | 1600 | 1800 | 2000 |
| Service weight incl. battery | kg | 3080 | 3200 | 3400 |
| lowered mast height | mm | 1995 | 1995 | 1995 |
| Free lift | mm | 120 | 120 | 120 |
| Overall length | mm | 2925 | 3080 | 3080 |
| Overall width | mm | 1084 | 1084 | 1145 |
| Fork dimensions (s/e/l) | mm | 35/100/920 | 40/100/1070 | 40/100/1070 |
| Turning radius | mm | 1620 | 1620 | 1620 |
| Travel speed,laden/unladen | km/h | 15 / 15 | 15 / 15 | 15 / 15 |
| Max.Gradient performance,laden/unladen | % | 15 / 20 | 15 / 20 | 15 / 20 |
| Battery voltage,nominal capacity K5 | V/Ah | Lion：76.8/150（277/412） |
