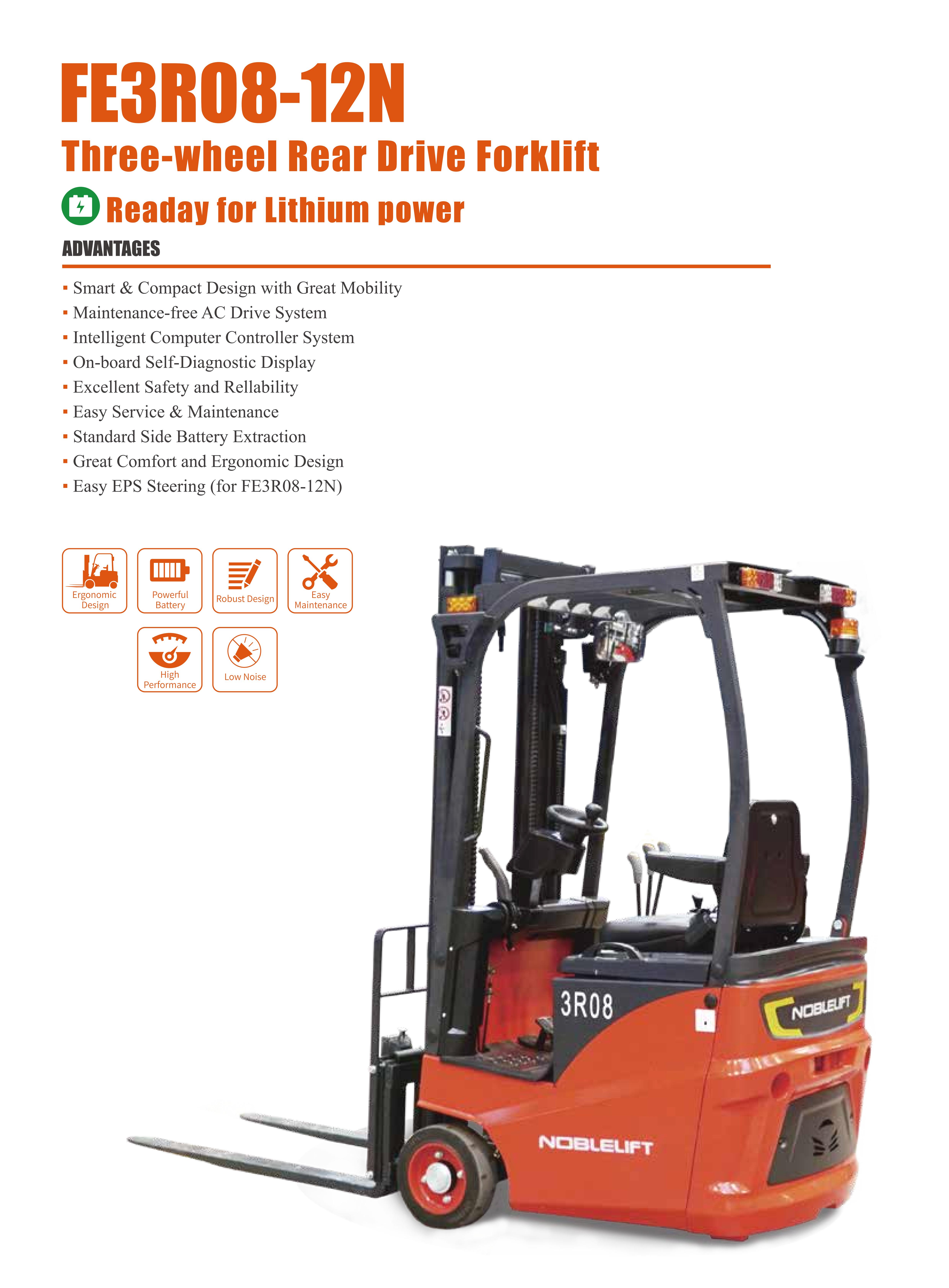

FE3R08-12N
Description
Description Parameter Manufacturer's type designation FE3R08NFE3R10NFE3R12NLoad capacity/rated loadkg80010001200Load Centermm500500500Service weight incl. batterykg180019102080Lift heightmm300030003000Fork dimensions (s/e/l)mm 35/100/92035/100/92035/100/920Turning radiusmm116013201350Battery voltage,nominal capacity K5V/Ah 24/280 24/420 24/420Optional BatteryV/Ah24/360/40024/480/54024/480/540
Read more
Finance the purchase of this product
with
Speak with an advisor now
Speak with an advisor now
Available listings
-
TCR Logismaq
Inquire
Available for financing
Product description
Description
Parameter
| Manufacturer's type designation | FE3R08N | FE3R10N | FE3R12N | |
| Load capacity/rated load | kg | 800 | 1000 | 1200 |
| Load Center | mm | 500 | 500 | 500 |
| Service weight incl. battery | kg | 1800 | 1910 | 2080 |
| Lift height | mm | 3000 | 3000 | 3000 |
| Fork dimensions (s/e/l) | mm |
35/100/920 | 35/100/920 | 35/100/920 |
| Turning radius | mm | 1160 | 1320 | 1350 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/280 | 24/420 | 24/420 |
| Optional Battery | V/Ah | 24/360/400 | 24/480/540 | 24/480/540 |
