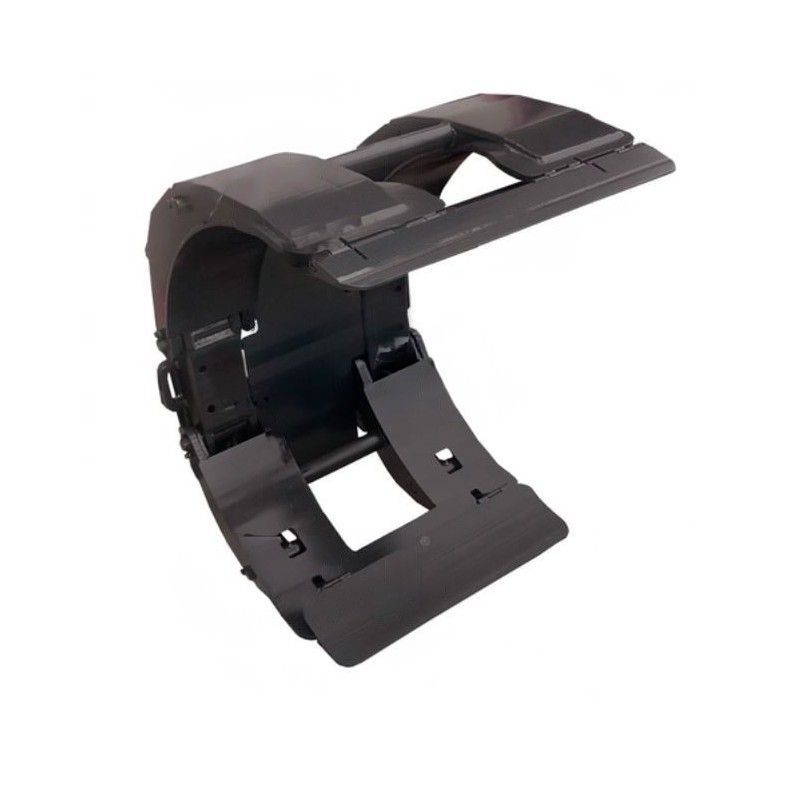

360º coil clamp FEM3A 2000kg

The 360º coil clamp FEM3A is designed for handling paper rolls with a maximum load capacity of 2000 kg. This clamp allows for easy rotation of the forks up to 360 degrees, enhancing operational efficiency. Technical Characteristics: • Mounting class: FEM3 • Type of assembly class: A • Rotative • Clamp capacity between forks in load center (Q2): 2000 kg • Charging center (LC): 800 mm • Loss of capacity (LL): 177 mm • Side slider included: No • Minimum coil diameter (D1): 500 mm • Maximum coil diameter (D2): 1600 mm • Height of frame (H7): 1190 mm • Measured distance on the arms (L18): 846 mm • Length of an undivided contact plate (L20): 1020 mm • Width of contact plates (W20): 250 mm • Width of contact pads: 1070 mm • Horizontal gravity center (HCG): 298 mm • Vertical gravity center (VCG): 393 mm • Implementing weight (G): 731 kg • Rotation angle (RA): 360° • Mounting angle (MA): 2° • Ground distance (H6): 76 mm • Type of attachment: CR • Pressure reducer valve present: No • Present gauge: No • Hydraulic functions: 2 • With fast detachment assemblies: No • Type of short arm • Type of long arm • Height portable board (H4): 508 mm • Maximum fixed frame width (W4): 850 mm • Different coil diameters that can be manipulated together: No • Recommended Pressure-Pinza (P-rec-CL): 160 Bar • Minimal oil flow-Pinza (OFR-min-CL): 20 l/min • Recommended oil flow-Pinza (OFR-rec-CL): 30 l/min • Max-Pinza oil flow (OFR-max-CL): 45 l/min • Tissue paper models available on request: Yes • Different contact surface pads on request: Yes • Rotary system: 180°
