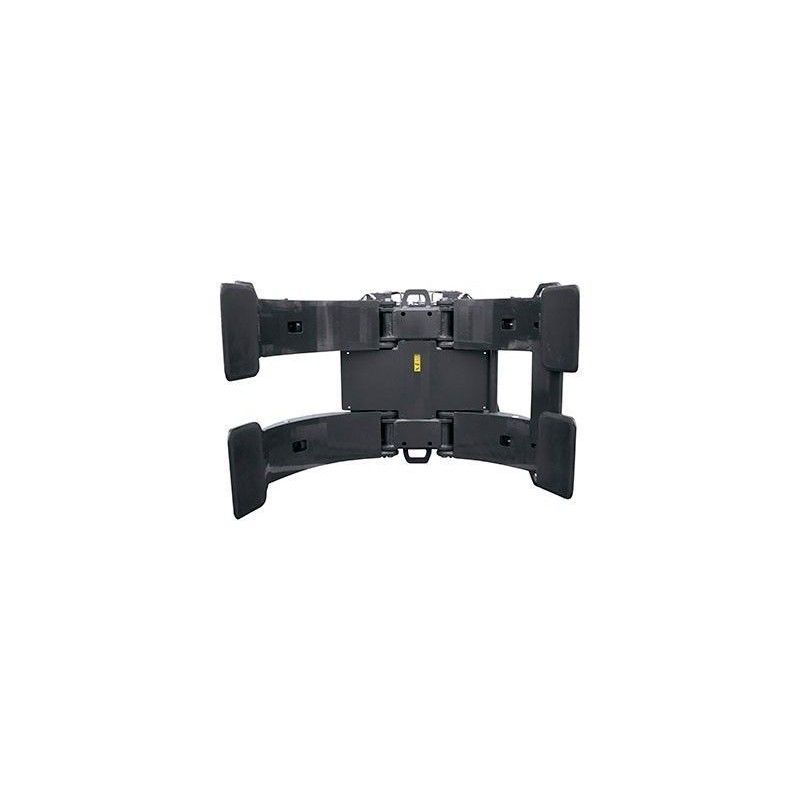

Double paper roll clamp for forklift

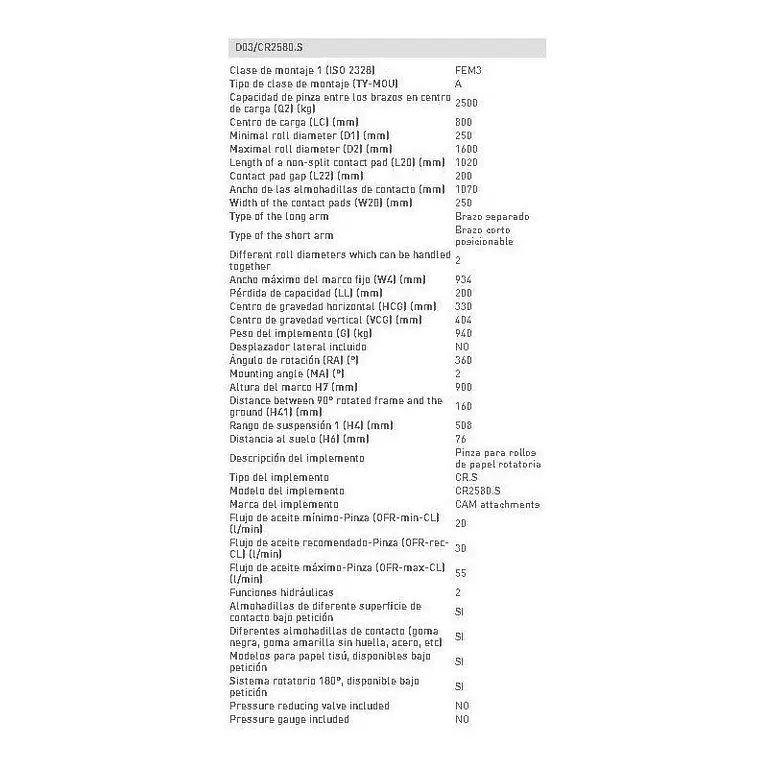

The double paper roll clamp for forklifts is designed to handle paper coils of various diameters, weights, and types efficiently. This specialized equipment is essential in the paper handling industry, enhancing productivity during the manipulation of paper rolls. Benefits: Utilizing this clamp significantly increases productivity in paper coil handling tasks. Characteristics: • Charging capacity: 1600 kg • Diameter range of paper rolls: 250-1600 mm • Loading center: 800 mm • FEM2A mounting class • Positionable short arm • Maximum fixed frame width: 850 mm • 360° rotation angle • 407 mm suspension strip • Distance to the floor: 76 mm • Recommended oil filter: 30 l/min • Includes 2 hydraulic functions • Customizable contact surface pads and 180° rotary system available upon request Technical Characteristics: • Assembly class: 1 (ISO 2328) • FEM2 • Clamp capacity between the arms at load center (Q2): 1600 kg • Charging center (LC): 800 mm • Minimal diameter of the roll (D1): 250 mm • Maximum diameter of the roll (D2): 1600 mm • Length of undivided contact pad (L20): 820 mm • Contact separator (L22): 200 mm • Width of contact pads: 870 mm • Width of contact pads (W20): 250 mm • Type of long arm: Separate arm • Type of short arm: Positionable short arm • Number of rolls of different diameters handled: 2 • Maximum fixed frame width (W4): 850 mm • Loss of capacity (LL): 175 mm • Horizontal gravity center (HCG): 305 mm • Vertical gravity center (VCG): 297 mm • Implementing weight (G): 695 kg • Side slider included: No • Rotation angle (RA): 360° • Mounting angle (MA): 2° • H7 frame height: 1190 mm • Distance between broken frame to 90° and soil (H41): 170 mm • Suspension range 1 (H4): 407 mm • Ground distance (H6): 76 mm • Description of attachment: Pinza para rollos de papel rotativo • Minimal oil flow (OFR-min-CL): 20 l/min • Recommended oil flow (OFR-rec-CL): 30 l/min • Max oil flow (OFR-max-CL): 45 l/min • Hydraulic functions: 2 • Customizable contact surface pads available: Yes • Different contact pads (black gum, yellow unmarked rubber, steel, etc.): Yes • Tissue paper models available upon request: Yes • 180° rotary system available upon request: Yes • Pressure reduction valve included: No • Pressure gauge included: No This clamp is also available for other load capacities and different diameters of paper rolls. Consult for more information.
