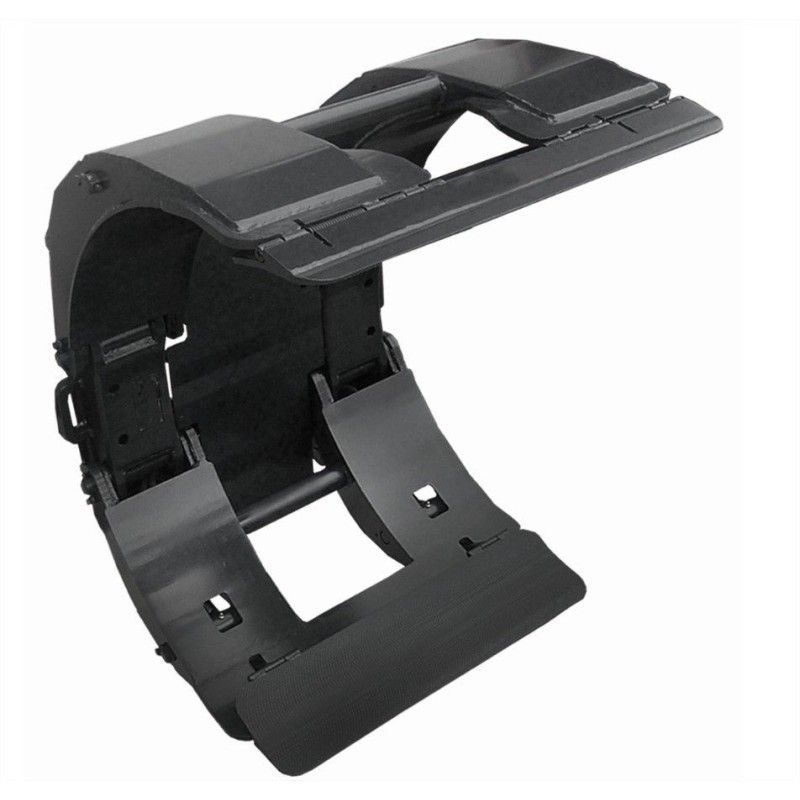

Paper roll clamp forklift with 1300 kg capacity

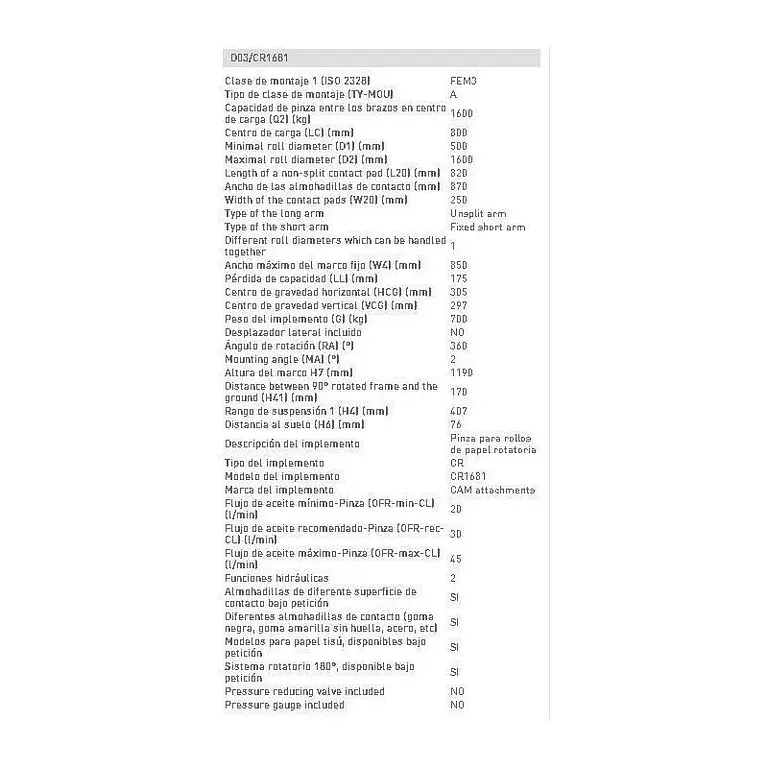

The paper roll clamp forklift is designed for efficient handling of paper coils, accommodating various diameters, weights, and types of paper. This specialized equipment is essential in the paper handling industry, enhancing productivity during the manipulation of paper coils. Benefits:Utilizing this tool significantly increases productivity in paper coil handling. Characteristics: • Charging capacity: 1300 kg • Diameter range of paper rolls: 250-1100 mm • Loading center: 550 mm • FEM2A mounting class • Positionable short arm • Maximum fixed frame width: 690 mm • 360° rotation angle • 407 mm suspension strip • Distance to the floor: 56 mm • Recommended oil filter: 30 l/min • Includes 2 hydraulic functions • Customizable contact surface pads and 180° rotary system available upon request Technical Characteristics: • Assembly class: 1 (ISO 2328) • Clamp capacity between the arms in load center (Q2): 1300 kg • Charging center (LC): 550 mm • Minimal diameter of the roll (D1): 250 mm • Maximum diameter of the roll (D2): 1100 mm • Longitude of undivided contact pad (L20): 720 mm • Width of contact pads: 770 mm • Width of contact pads (W20): 230 mm • Type of long arm: Inseparable arm • Type of short arm: Positionable short arm • Rolls of different diameter handled at once: 1 • Maximum fixed frame width (W4): 690 mm • Loss of capacity (LL): 205 mm • Horizontal gravity center (HCG): 230 mm • Vertical gravity center (VCG): 297 mm • Implementing weight (G): 560 kg • Distance on the arms (L18): 690 mm • Side slider included: NO • Rotation angle (RA): 360° • Mounting angle (MA): 2° • H7 frame height: 890 mm • Distance between broken frame to 90° and soil (H41): 145 mm • Suspension range 1 (H4): 407 mm • Ground distance (H6): 76 mm • Description of attachment: Pinza for rolls of rotary paper • Type of attachment: CR • Minimal oil flow-Pinza (OFR-min-CL): 20 l/min • Recommended oil flow-Pinza (OFR-rec-CL): 30 l/min • Max-Pinza oil flow (OFR-max-CL): 45 l/min • Hydraulic functions: 2 • Different contact surface pads on request: YES • Different contact pads (black gum, yellow unmarked rubber, steel, etc): YES • Tissue paper models available on request: YES • 180° rotary system, available on request: YES • Pressure reluctance valve included: NO • Pressure gauge included: NO • Also available for other load capacities and different diameters of paper rolls. Consult us.
