JCB Ejes Ejes

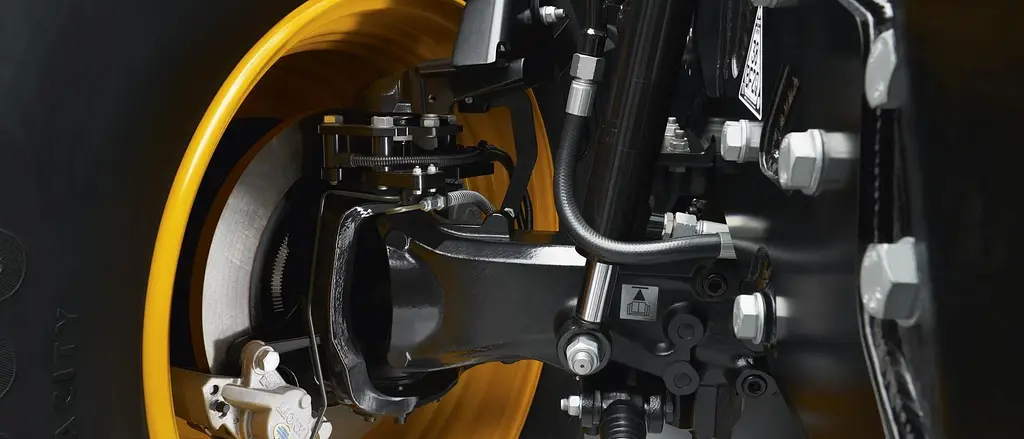

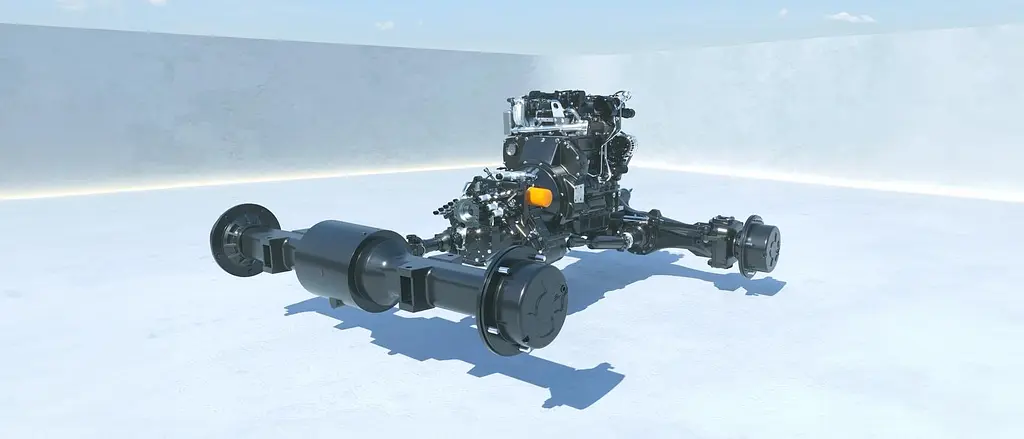

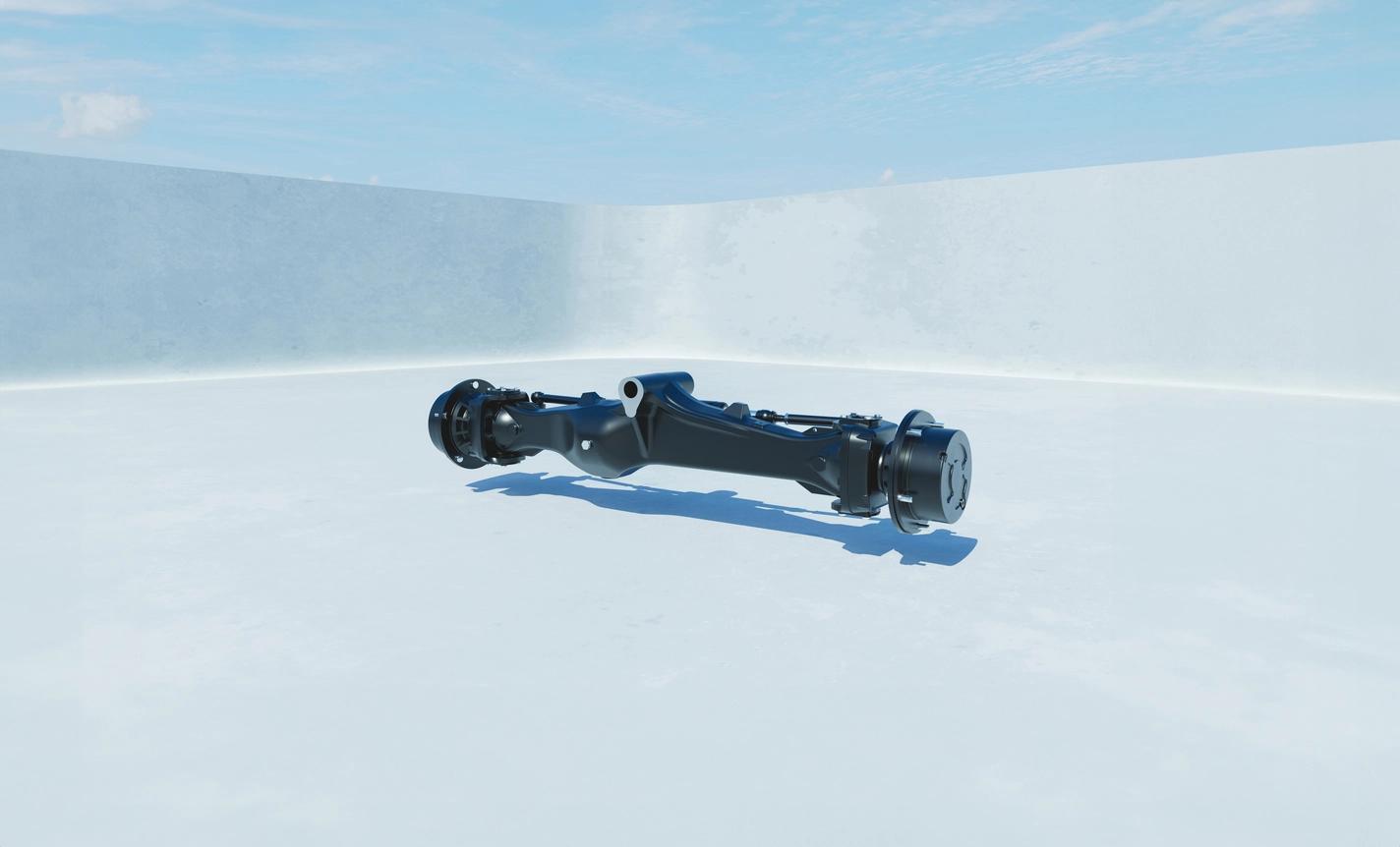

With a wide range of JCB steering and rigid axles of up to 12 000 kg (26 500 lb) dynamic load capacity available from JCB, there are multiple options when it comes to your axle needs. JCB AxlesWithin the heavy-duty 4x4 axle range, we offer steering and rigid drive axles for trucks that provide high performance in the harshest operating conditions. They work with double reduction and a planetary hub, ideal for a wide variety of on-road and off-road vehicles. We also offer off-road equivalents for heavy-duty work in our non-driven dead steering axle models, which feature the same rugged design. All our axle ranges are available in pivoting support and center-pivot mounting with a modular construction, so they offer great flexibility in a variety of application configurations. In addition, they feature different axle and differential ratios, oil-immersed and self-adjusting service brakes, and proven reliability both on the test bench and in the field. Why JCB Powertrain for OEM?JCB Powertrain offers the supply of all the components needed for a complete OEM driveline solution, including the engine, axles, transmission and integrated transmissions. Complete JCB driveline system packages: • A tailor-made package for every application gives you a complete solution. • A fully integrated driveline system that delivers high efficiency. • It integrates JCB's vast experience in off-road machines and proven technology. • Robust, heavy-duty components proven in JCB machines. • Comprehensive engineering support from concept to installation for the complete package. • A single point of contact for all integration support requirements, engineering knowledge and service. Dead steering axlesDynamic load capacity kg (lbs) 4000 (8800) 5500 (12100) 8000 (17600) Static load capacity kg (lbs) 12000 (26500) 16500 (36400) 24000 (53000) Maximum steering angle ° 97 52 52 Flange-to-flange distance mm 1520 1840/1760 N/A Rigid drive axleDynamic load capacity kg (lb) 4000 (8800) 5500 (12100) 7000 (15400) 12000 (26500) 9000 (19800) Static load capacity kg (lb) 12000 (26500) 16500 (36000) 21000 (46000) 32000 (70000) 27000 (59525) Maximum output torque (Continuous) Nm (lb/ft) 5000 (3688) 9700 (7154) 14000 (10326) 14000 (10326) 15000 (11064) Maximum output torque (Intermittent) Nm (lb/ft) 15000 (11000) 29000 (21389) 42000 (30978) 42000 (31000) 47000 (35000) Flange-to-flange distance mm 1400 1520 1520 1890 1940 Steering drive axleDynamic load capacity kg (lb) 5500 (12000) 5500 (11000) 7000 (15400) 8000 (17600) 15000 (33100) Static load capacity kg (lb) 11000 (24000) 16500 (36400) 21000 (46300) 24000 (53000) 30000 (66100) Maximum steering angle ° 38 52 40 38 45 Maximum output torque (Continuous) Nm (lb/ft) 6600 (4868) 9700 (7155) 14000 (10326) 14000 (10326) 21000 (15488) Maximum output torque (Intermittent) Nm (lb/ft) 20000 (14751) 29000 (21389) 42000 (30978) 42000 (30978) 65000 (47941) Flange-to-flange distance mm 1527 1450-1968 1840-1968 1896-1968 2050-2180
