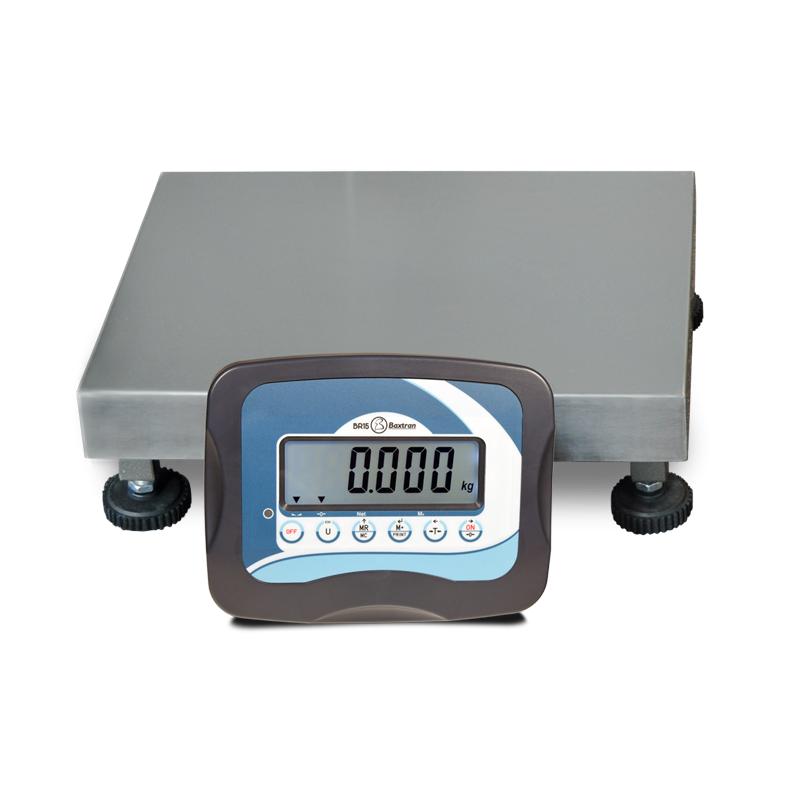

Single-cell scale indicator removable model BR15

The weighing indicator is designed for durability and ease of use in industrial applications, featuring a robust ABS housing and an LED display. It is available in two versions: Version (P) with dimensions of 400x300 mm, which includes a tubular steel structure painted in epoxy, a stainless steel plate, and an IP65 aluminum cell; and Version (M) with dimensions of 500x400 mm, also featuring a tubular steel structure painted in epoxy, a stainless steel plate, and an IP65 aluminum cell. The indicator model BR15 is equipped with IP54 protection and a waterproof keyboard that includes five function keys and switching keys. The illuminated retro LCD display shows six digits, each 30 mm in height, with three backlight settings: automatic, activated, and deactivated. The ABS support for the column includes wall anchor holes for secure installation. Operating temperature ranges from -10°C to +40°C. The device is powered by an AC/DC 240Vac 50Hz adapter and includes a rechargeable 6V/4Ah battery. Battery life is approximately 120 hours with the backlight activated and 160 hours with it deactivated. The indicator allows for configurable gravity and offers multiple unit options: Unit 1 (off, kg, t, g), Unit 2 (off, lb, lboz), and Unit 3 (off, Taiwan Jin, CA, or VISS). It features an RS232 output for data transmission in PC format and printer compatibility, along with multi-range and multi-interval capabilities. Additional functions include accumulation, totalization, parts counting, zeroing, and four hold modes: deactivated, moving animal, epic value, stable, and stable with auto cancellation to zero. It also supports weight control and AD parts (high, medium, and low), gross/neto weighing, and tare functionality.
