ZDM 1AR-E submersible pump
ZDM 1AR-E submersible pump

ZDM 1AR-E submersible pump

Description

The ZDM 1AR-E is a submersible drainage pump manufactured by Pedrollo S.p.A., specifically designed for draining clear or slightly dirty water in both domestic and civil applications. This model is part of the ZD (ZDm) series, which includes other models such as ZDm 1B-E and ZDm 1A-E. Key Specifications: • Flow Rate: Up to 300 liters per minute (18 m³/h) • Head (Maximum Delivery Height): Up to 14 meters • Maximum Liquid Temperature: +40°C • Maximum Operating Depth Below Water Level: Up to 5 meters (with appropriately sized power cable) • Suspended Solids Handling: Up to 10 mm in diameter • Minimum Immersion for Continuous Service: 180 mm Construction Materials: • Pump Housing: Cast iron • Impeller: Technopolymer • Motor Sleeve: Stainless steel AISI 304 • Shaft: Stainless steel AISI 431 Standards Compliance: The ZDM 1AR-E pump adheres to the following standards: • ISO 228/1: Specifies the general requirements for pipe threads for use with liquid and gas. • EN 60335-1: Safety of household and similar electrical appliances – Part 1: General requirements. • EN 60034-1: Rotating electrical machines – Part 1: Rating and performance. For detailed technical documentation, including datasheets and manuals, visit Pedrollo's official website. Please note that the ZDM 1AR-E model has been replaced by the ZXM 1A/40 submersible pump.
Finance the purchase of this product with Plettora Speak with an advisor now

Available listings

Product description

The ZDM 1AR-E is a submersible drainage pump manufactured by Pedrollo S.p.A., specifically designed for draining clear or slightly dirty water in both domestic and civil applications. This model is part of the ZD (ZDm) series, which includes other models such as ZDm 1B-E and ZDm 1A-E.

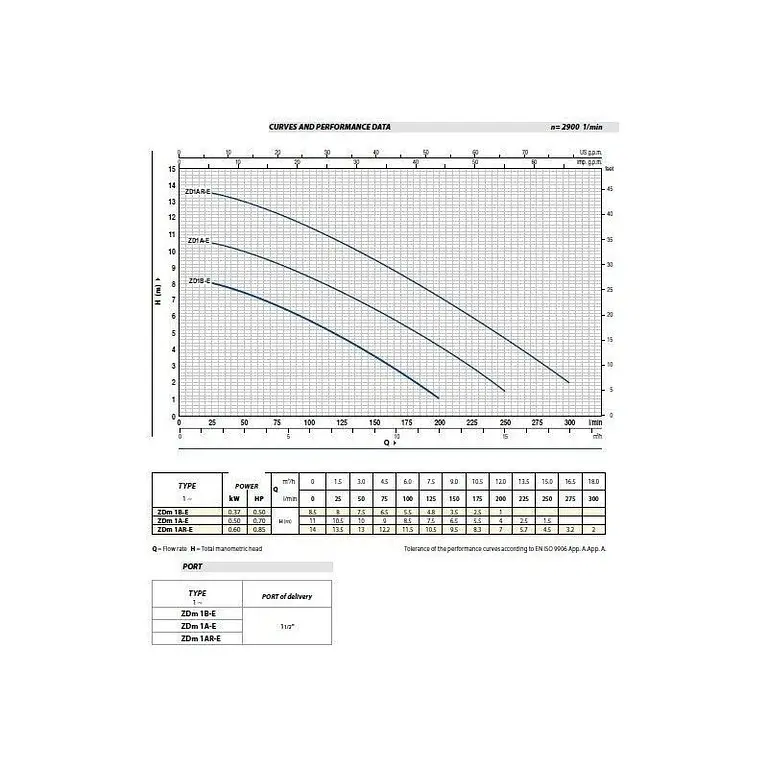

Key Specifications:

  • Flow Rate: Up to 300 liters per minute (18 m³/h)
  • Head (Maximum Delivery Height): Up to 14 meters
  • Maximum Liquid Temperature: +40°C
  • Maximum Operating Depth Below Water Level: Up to 5 meters (with appropriately sized power cable)
  • Suspended Solids Handling: Up to 10 mm in diameter
  • Minimum Immersion for Continuous Service: 180 mm

Construction Materials:

  • Pump Housing: Cast iron
  • Impeller: Technopolymer
  • Motor Sleeve: Stainless steel AISI 304
  • Shaft: Stainless steel AISI 431

Standards Compliance:

The ZDM 1AR-E pump adheres to the following standards:

  • ISO 228/1: Specifies the general requirements for pipe threads for use with liquid and gas.
  • EN 60335-1: Safety of household and similar electrical appliances – Part 1: General requirements.
  • EN 60034-1: Rotating electrical machines – Part 1: Rating and performance.

For detailed technical documentation, including datasheets and manuals, visit Pedrollo's official website.

Please note that the ZDM 1AR-E model has been replaced by the ZXM 1A/40 submersible pump.
