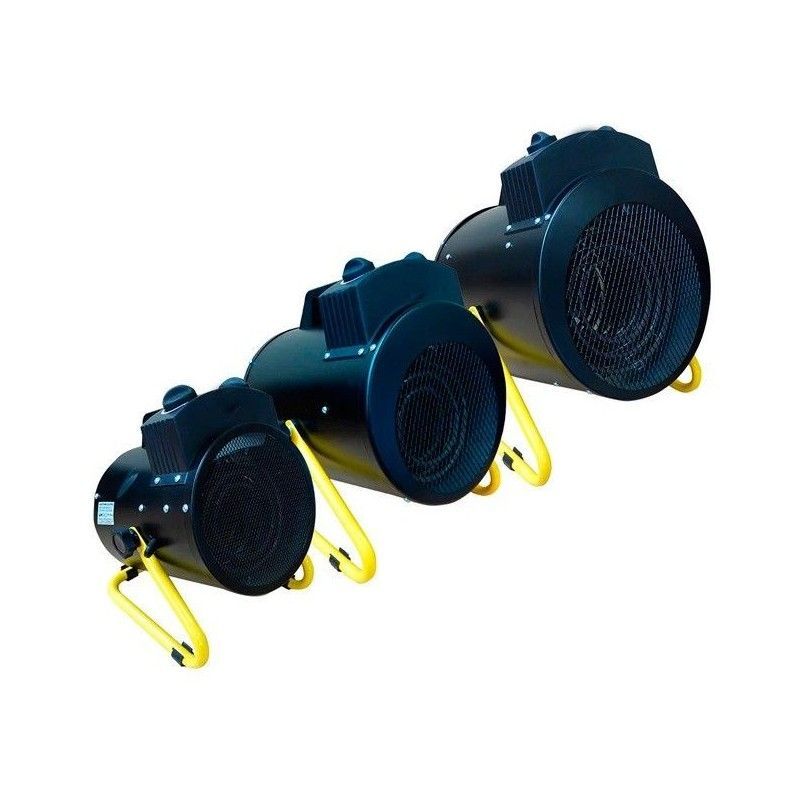

3Kw to 9Kw industrial electric ventilators

New industrial aeroterms with different electrical powers. These new fans are small and high-efficiency, very compact and lightweight. Ideal for any space (nave, workshop, garage, etc) can be used in wet areas, thanks to its electrical protection (IPX4). Made of stainless steel, with all protected devices with double protection against overheating. The handle and legs are protected with insulating plastic cover and metal housing covered against dust and oxidation. It has adjustable thermostat to select the desired temperature. Power selector in the control box, to be able to work or 50% or to its maximum power. The 3Kw model has a simple connection: 1.5m cable with standard monophase clamp. The 5Kw and 9Kw models have a three-phase connection: 1.5m cable with 16A 3F+N+T three-phase CEE clasp. TECHNICAL CHARACTERISTICS • Electric power: 3 kW, 5 kW, 9 kW • Heat power: 1.5kW - 3kW 1.290/2.580 kcal/h, 2.5kW - 5kW 2.150/4.300kcal/h, 4.5kW - 9kW 3.870/7.740kcal/h • Performance: 100% • Air flow: 354m3/h, 260m3/h, 650m3/h • Service voltage: 230V - 50Hz, 400V - 50Hz • Connection: 1.5m cable with standard monophase clasp, 1.5m cable with CEE 16A 3F+N+T • Electrical intensity: 12.5A, 7.2A, 13A • Recommended volume: 30m2, 48m2, 80m2 • Dimensions (LxAnxAl): 243x227x295mm, 330x290x360mm, 330x330x400mm • Weight: 3.7kg, 6.8kg, 9.1kg
