Potain MD 1600 Topbelt 24 Top-Slewing Cranes

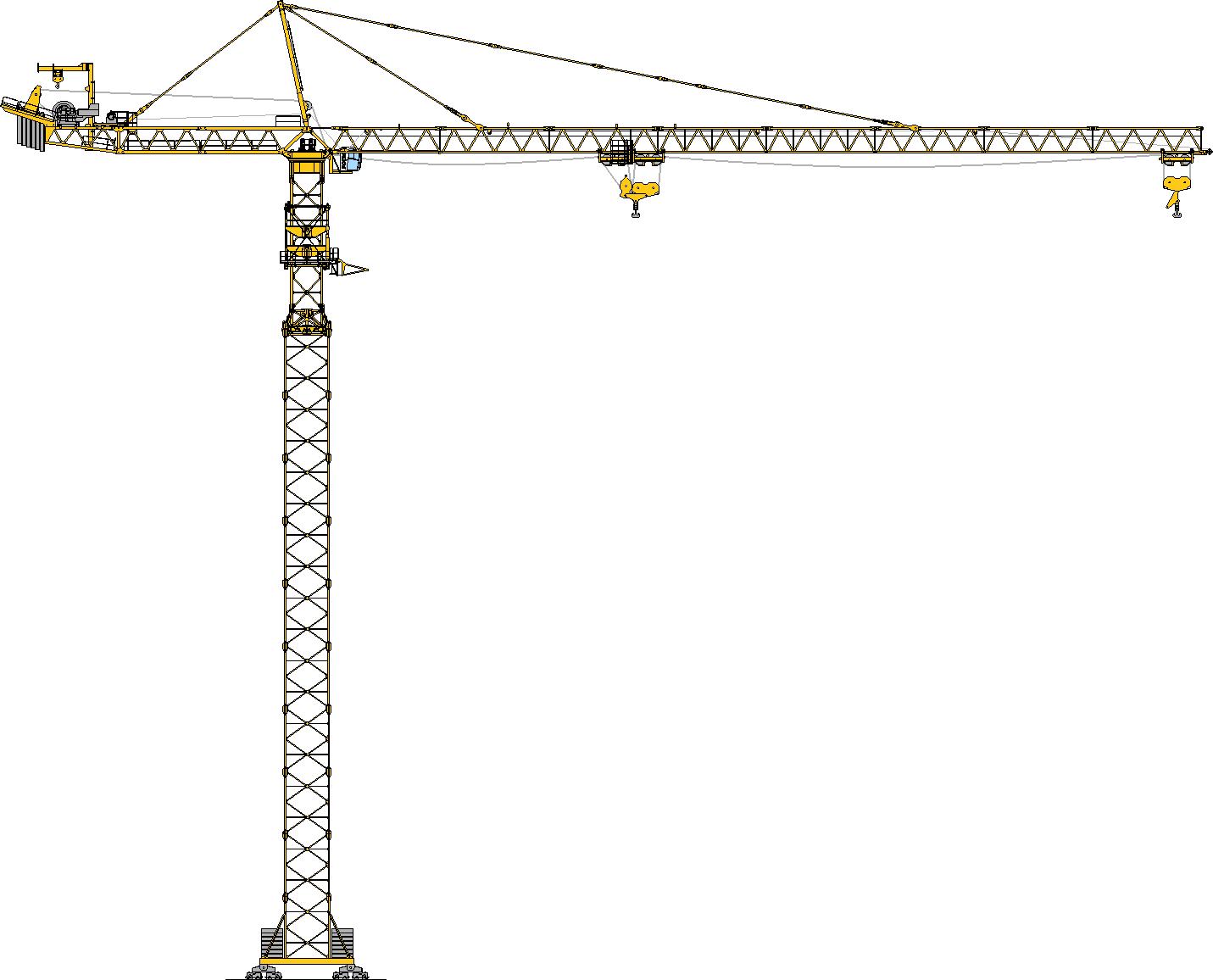

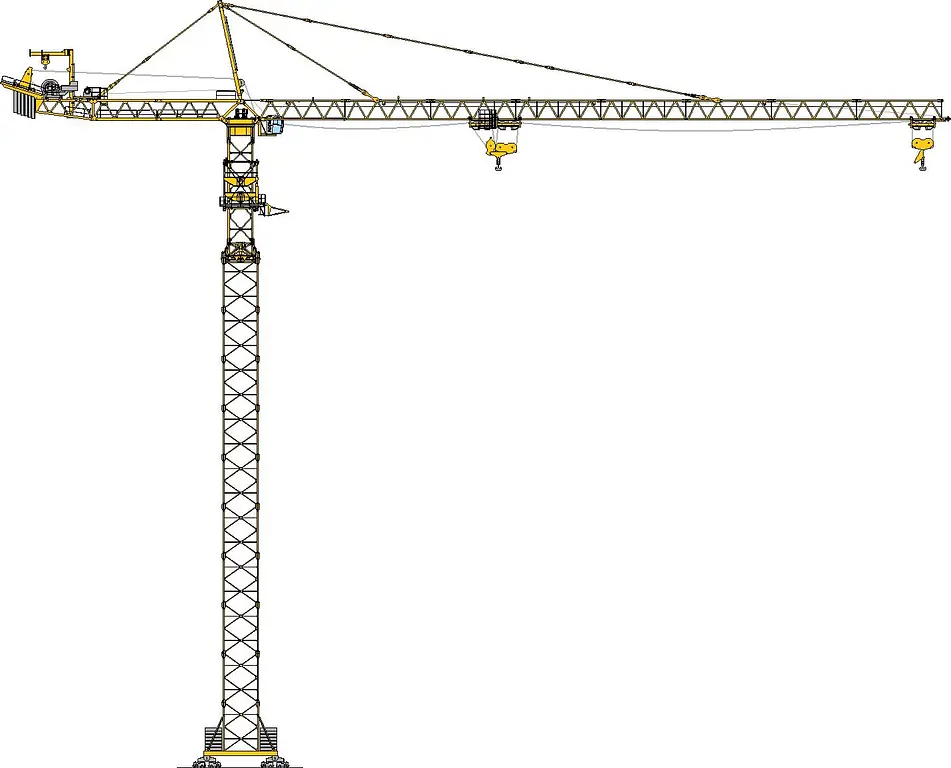

The MD1600 Topbelt 24 offers all the advantages combined by a distributing crane of strong capacity associated with a conveyor belt for intensive concrete placing. In a distributing crane mode the MD1600 distinguishes itself by a strong capacity load chart with 17 4t at the radius of 80 m and a maximum load of 64t at the radius of 24 6m allowing the lifting of heavy loads or a concreting with a concrete bucket of 7m3. The crane has a free height under hook of 91 6m. In a Topbelt mode the crane handles a conveyor for concreting allowing a volume of 240m3 per hour by covering and by overflying a surface of 25.000m² with a maximum radius of 105m. The conveyor uses a standard belt size of 24' (inches) wide.
