Potain MD 2200 Topbelt 30 Top-Slewing Cranes

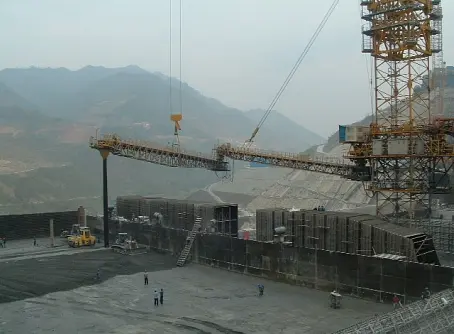

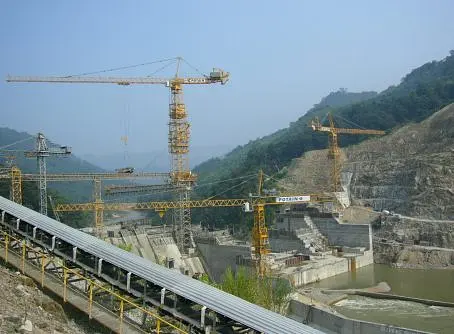

The MD 2200 Topbelt 30 offers all the advantages combined by a distributing crane of strong capacity associated with a conveyor belt for intensive concrete placing. In a distributing crane mode the MD 2200 distinguishes itself by a strong capacity load chart with 22.8t at the radius of 80 m and a maximum load of 60t at the radius of 32m allowing the lifting of heavy loads or a concreting with a concrete bucket of 9m3. The crane has a free height under hook of 93m. In a Topbelt mode the crane handles a conveyor for concreting allowing a volume of 400m3 per hour by covering and by overflying a surface of 25.000m² with a maximum radius of 105m. The conveyor uses a standard belt size of 30' (inches) wide.
