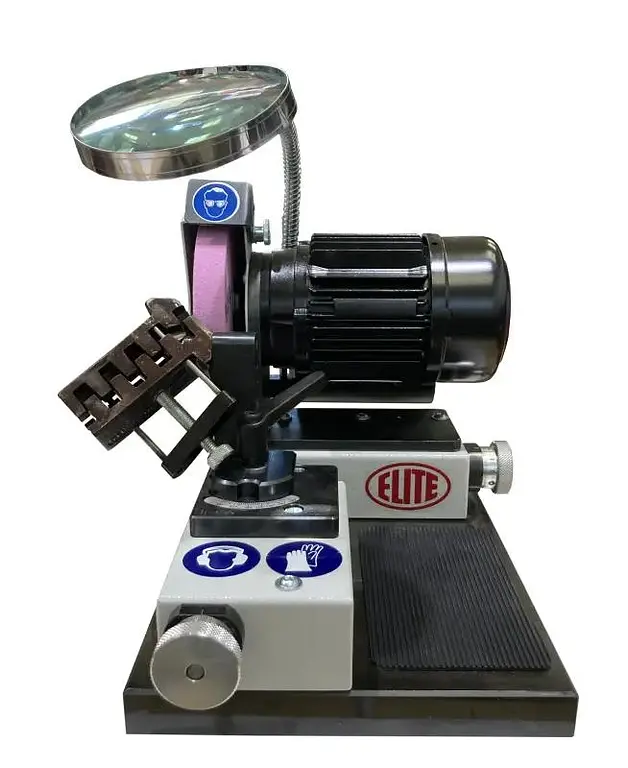

DRILL SHARPENING MACHINE FROM ø1 TO ø20 MM. 2, 3 OR 4 CUTS TO THE RIGHT AND LEFT. PRECISE SHARPENING OF DRILLS.

Highlights include the front adjustment of the grinding load for precision grinding, and lateral adjustment for centering the edge of the bit in relation to the grinding wheel. It features a built-in magnifying glass to check the required sharpening load against the wear of the bit and the final sharpening result without needing to disassemble the drill bit. Suitable for drills with left or right cut. Drill bit diameter: ø1 to ø20 mm. A corundum grinding wheel of ø125 x 20 x 20 mm is included.

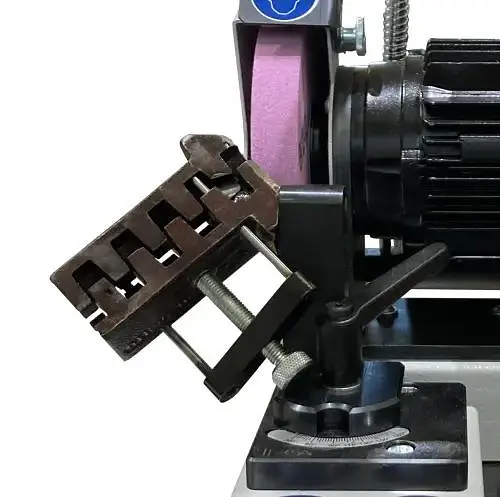

ELITE B 20. MACHINE BASE. The Elite model B-20 allows fast and precise sharpening of drills. The machine comes standard with a practical magnifying glass to check the wear on the drill and the grinding result without removing the drill from the machine. The sharpening load is regulated with the front knob to achieve an even and precise load. If the drill needs to be centered with the grinding wheel, the side knob is utilized. The base of the machine incorporates a template with the standard degrees of drills already marked, making it easy to obtain the correct angles.

ELITE B 20. HOW IT WORKS. View of the drill bit. Magnifying glass for quality work. ELITE B 20. OPTIONAL ACCESSORIES include a 3 cuts drills adaptor, Morse taper 1 short drills holder, Morse taper 2 short drills holder, special corundum grinding wheel, diamond grinding wheel, and CBN grinding wheel.

ELITE B 20. SPECIFICATIONS. TECHNICAL DATA. ELITE B 20. Sharpening capacity: From ø1 to ø20 mm (0.039" to 0.78"). Type of drills: 2, 3, and 4 cuts drills for wood or steel, right and left. Travel range: Motor slide of 55 mm. Travel range: Prism feed of 45 mm. Clamping range prism: 2.0 - 20.0 mm. Connection voltage: 110/220 V, single phase. Noise emission: <70 dB (A). Flow time of grinding wheel: around 10 seconds. Machine dimensions: 290 x 220 x 250 mm. Net weight: 13.5 Kg.

AVAILABLE VERSIONS. Model. Packing Size. Gross weight. B 20. 370 x 310 x 260 mm. 32 Kg.
