Pack System weighing with LCD display Forklift

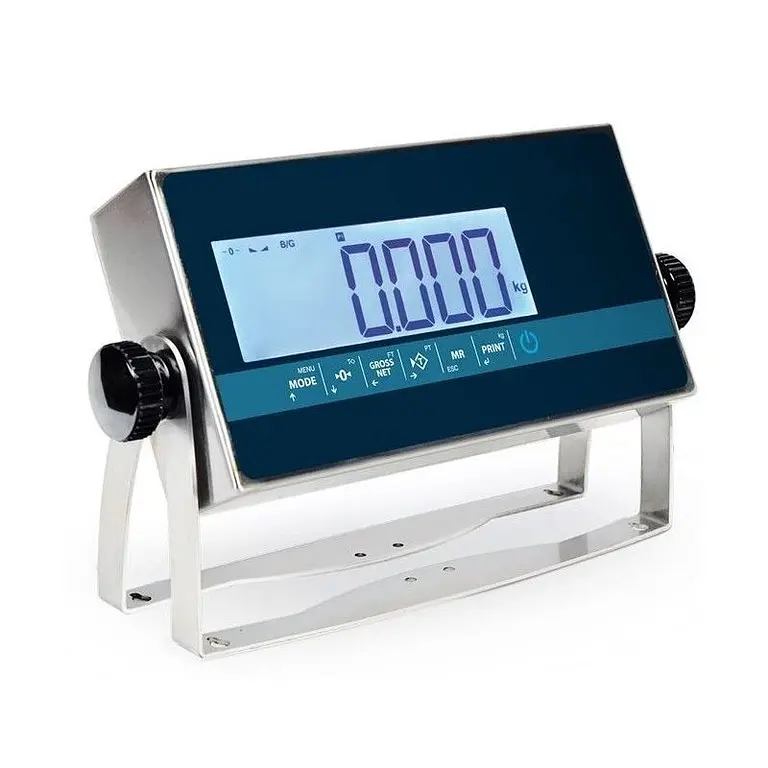

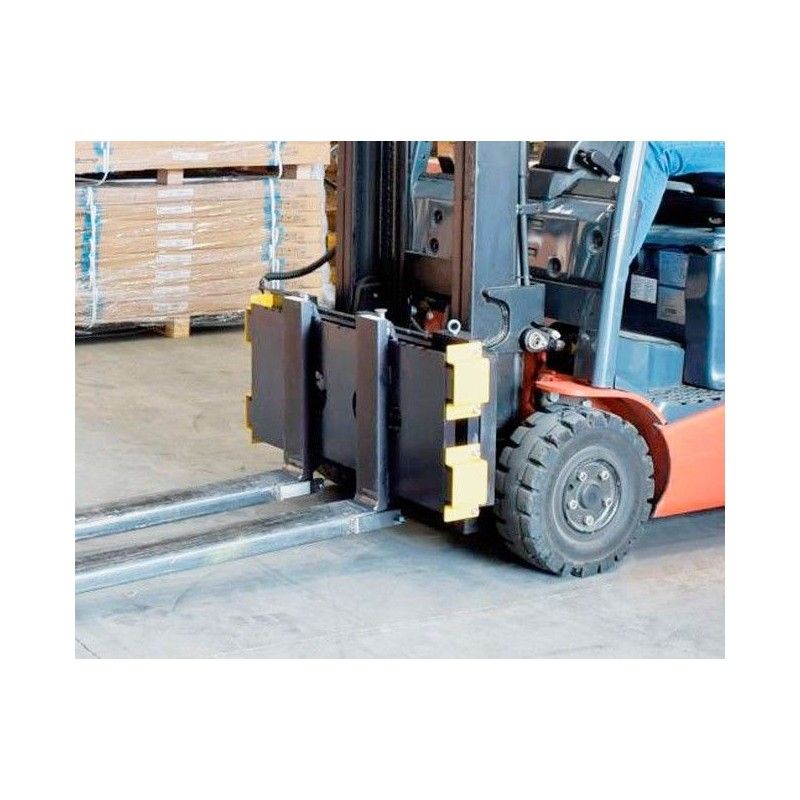

Integrated weighing system for fork lift truck fork plates. Maximum load capacity of 2,500kg. The pack includes a plate that is easily placed on the fork board and an LCD display that is placed in the cabin. (Also available separately) Weighing system here and LCD display here. WEIGHING SYSTEM FEATURES Mobile weighing scale for fork lift trucks. Maximum load capacity of 2,500kg. Consists of a plate that is easily placed on the fork board Scale fixation according to DIN15173 - FEM class II standards. Also available in verified version, please consult us. Its installation is simple and quick and allows weighing the load while handling with the fork lift truck. FEATURES Load capacity: 2,500kg. Dimensions (net/packed): 984 x 461 x 140mm./1200 x 800 x 300mm. Weight (net/packed): 180/200kg. 2 IP68 load cells Stainless steel load cells 2mV/V. Hermetically sealed box. Accuracy: 1kg. Easy and quick assembly. LCD DISPLAY FEATURES Advanced LCD display for weight indication. Compatible with the weighing scale for fork lift trucks reference M103110053. FEATURES Display housing in stainless steel or ABS IP54, IP65 or IP68 protection Backlit LCD screen with 40mm digits Includes tiltable wall mount 230VAC power supply Includes 2 RS232 outputs as standard Monorange, multirange or multi interval Units: Kg Approval for 6000 divisions OIML class III and IV CE certification FUNCTIONS Weight accumulation: automatic/manual Totalization on screen Gross/net Tare and manual pre-tare Zero reset Piece counting function Checkweighing and setting target weight Function 1/10 of verification division. Display for a few seconds. KEYBOARD FUNCTIONS Return to menu / Mode, Zero / Tare, Gross / Net, Tare, Weight totalization / Escape, Power On / Off, Print / Send manual weight / Units. *More displays available. *Available in verified version. Please consult us for more information.
