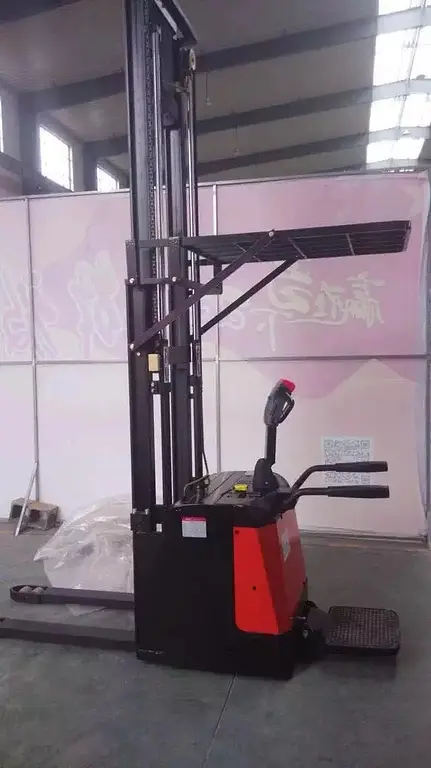

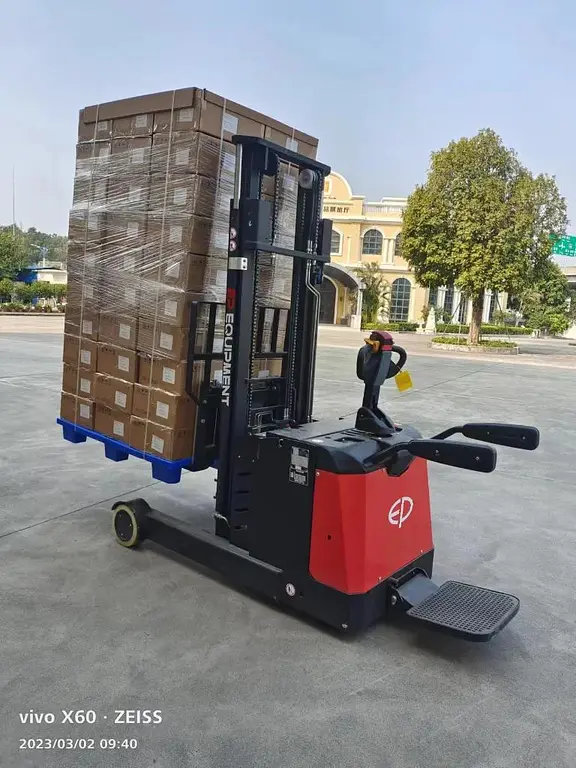

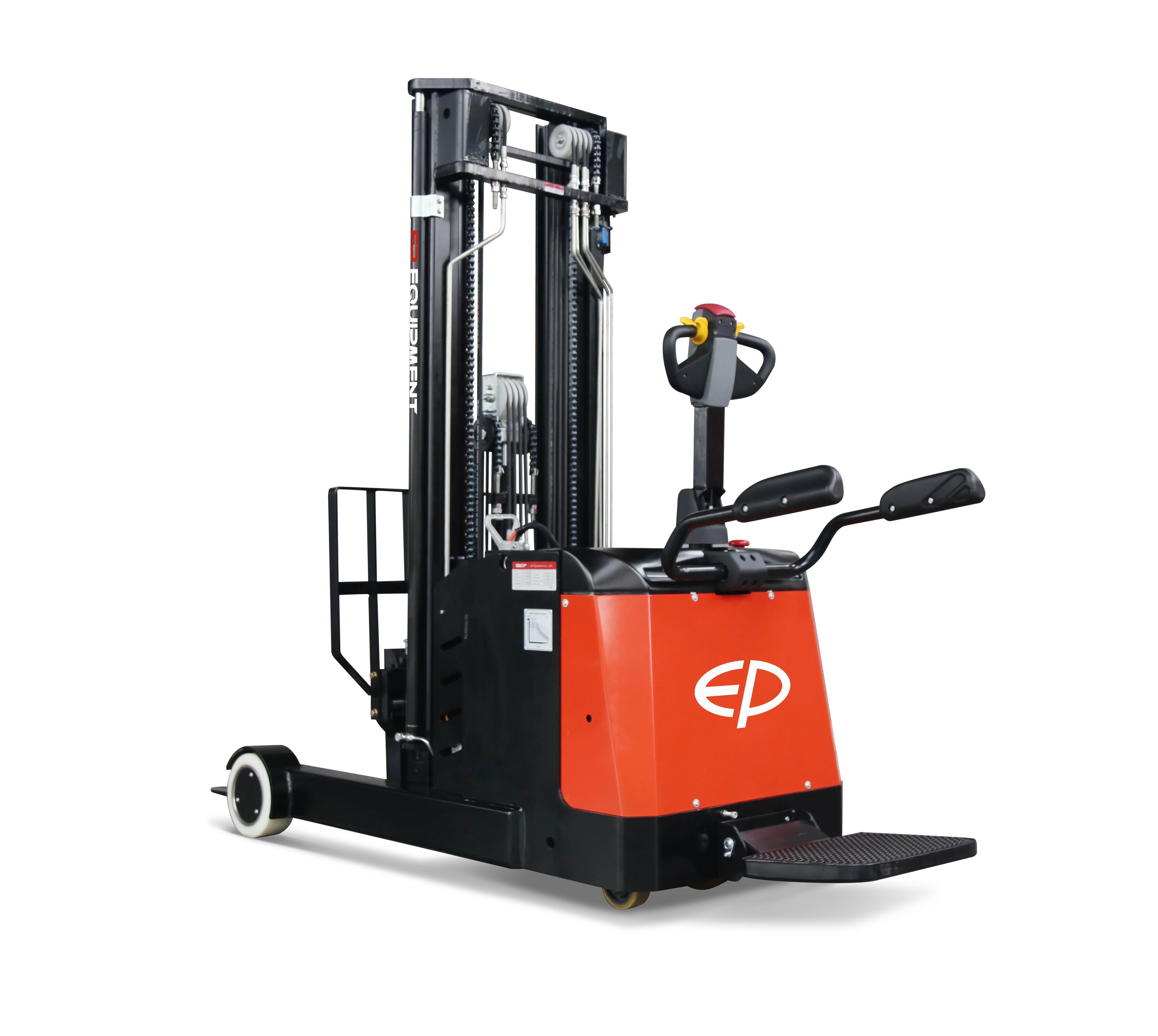

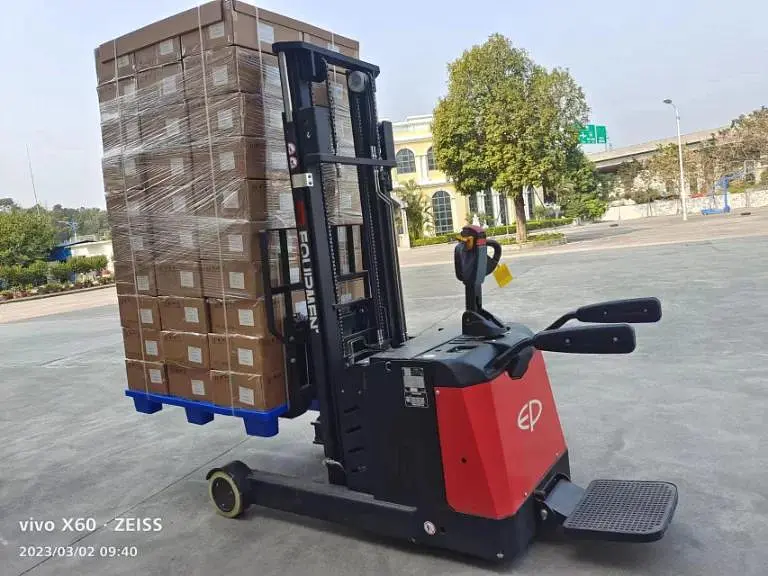

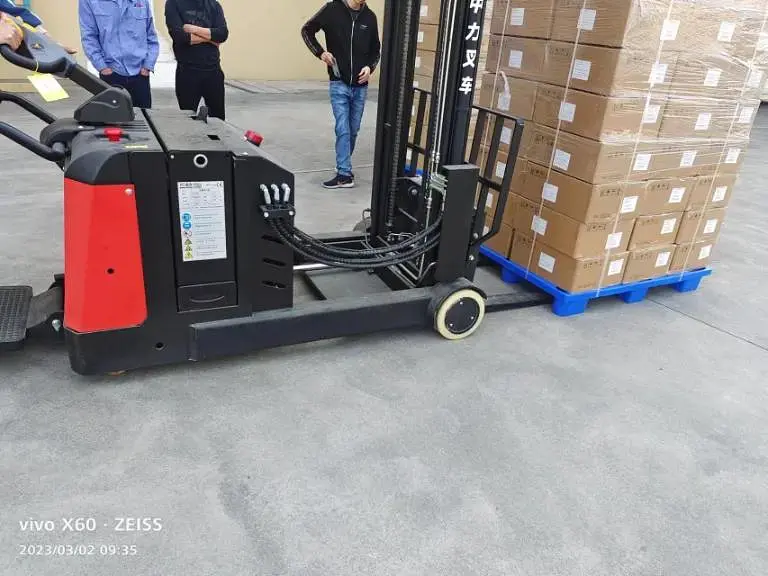

Electric Reach Truck 1.5T - EP CQE15R

Explore the CQE15RThe CQE12R/15R series delivers reliable stacking with lift heights up to 5.5 meters and load capacities of 1.2 or 1.5 tons. Equipped with an AC traction motor, electronic power steering (EPS), and proportional hydraulic controls, it ensures smooth, precise, and efficient operations in tight warehouse spaces. With overall widths starting at just 850 mm and turning radii of 1597–1697 mm, the CQE12R/15R is engineered for efficient operations in tight warehouse environments and narrow aisles. Compact design for narrow aisles Capable of reaching lift heights up to 5.5 m, the CQE12R/15R uses a reinforced mast and proportional hydraulics to maintain stability, precision, and safety even at maximum stacking heights. Stable and safe lifting Equipped with a 24V/210–280Ah battery as standard, the truck also offers optional Li-ion packs (205Ah) with external 24V/100A chargers, supporting quick, maintenance-free charging. Reliable Li-ion and lead-acid battery options Operators benefit from EPS steering, a foldable platform, ergonomic tiller head, and anti-rollback braking. Multiple safety systems, including hydraulic drop protection and emergency stop, ensure smooth and secure operation. Operator comfort and safety features ApplicationThe CQE12R/15R is the ideal solution for logistics hubs, warehouses, and retail distribution centers with space constraints. Its narrow chassis (850–1018 mm width) and tight turning radius (1597–1697 mm) make it effective in confined aisles, while the reach mast system enables safe pallet stacking at high levels. With polyurethane wheels, optional cold storage configuration, and side-shift attachments, it adapts to various industries requiring flexible, reliable material handling. Make an EnquiryDatasheet About the CQE15RThe CQE12R/15R series combines ergonomic design, advanced safety features, and global-quality components to maximize efficiency and operator comfort. Powered by a 24V battery (210–280Ah lead-acid or optional Li-ion), it supports long shifts with the benefit of opportunity charging in Li-ion versions. Safety is ensured by a hydraulic system that prevents sudden drops, anti-rollback braking on slopes, and emergency disconnect systems. Operators benefit from EPS steering, a foldable platform, ergonomic tiller head, and proportional lift control for precise stacking. With mast options up to 5.5 meters and optional accessories such as telematics and water auto-filling systems, the CQE12R/15R is a versatile reach truck for modern warehouse operations. FAQsCommon questions people ask about the CQE15R. • What are the load capacities of the CQE12R and CQE15R? The CQE12R has a load capacity of 1200 kg, while the CQE15R supports up to 1500 kg, making the series versatile for medium-duty stacking tasks • How high can these models lift? Both versions offer mast options with lift heights up to 5.5 meters, ensuring safe stacking in medium- to high-level racking systems. • What battery options are available? They come standard with 24V lead-acid batteries (210–280Ah) and can be optionally equipped with Li-ion batteries (205Ah) for opportunity charging and reduced maintenance. • Are the CQE12R/15R suitable for narrow aisle operations? Yes. With chassis widths of 850–1018 mm and turning radii between 1597 and 1697 mm, they are designed specifically for narrow aisles and space-constrained warehouses. • What safety features are included? The series is equipped with hydraulic drop protection, anti-rollback braking, emergency stop, and proportional hydraulics for precise and secure load handling.
