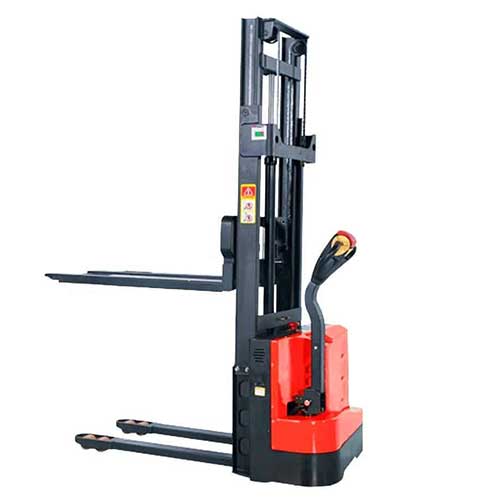

The Manupack 1500 kg electric stacker with a 2500 mm lifting height is the mid-range model in the QDA 1500 kg range, designed for high-traffic warehouses that need to lift pallets and heavy loads to second-level racking. With a maximum lifting height of 2500 mm, it covers installations with two levels of racking where the 1600 mm range falls short.

Made of high-strength steel, it incorporates a high-pressure hydraulic pump with an electric motor and a 2x12V/75Ah GEL battery with integrated charger. Speed control and fork lowering control ensure precise and safe handling of heavy loads at height. Its robust and compact design makes it suitable for working in narrow aisles while maintaining the necessary stability.

The 1500 kg electric stacker with a 2500 mm lifting height is equipped with Euro pallet forks (540 x 1150 mm) and polyurethane wheels on both the front forks and the tiller. Its 1830 mm folded height allows for use on standard trucks and loading docks. The net weight of 553 kg ensures the necessary stability for loads close to the maximum rated capacity.

The 1500 kg electric stacker with a 2500 mm reach is suitable for sectors that regularly handle heavy loads and need to reach the second level: intensive distribution logistics, the metalworking industry, construction, large-format food packaging, and agriculture. The combination of 1500 kg capacity and 2500 mm reach makes it the right choice when the 1600 mm model cannot reach the upper racking. If usage is moderate or occasional, 1500 kg manual stackers are also available.

With a 1500 kg load at a height of 2500 mm, the physical effort required by a manual stacker is significant, and operator fatigue directly impacts safety. The electric stacker completely eliminates this effort, reduces fatigue, and increases productivity during long workdays. The GEL battery requires no distilled water maintenance and offers sufficient autonomy for a full workday on a typical charge.

It is recommended to charge the battery at the end of each day and avoid deep discharges to prolong its lifespan. Manupack offers personalized after-sales service with a large stock of spare parts to minimize downtime.

The Manupack 1500 kg electric stacker with a 2500 mm lifting height complies with the Machinery Directive 2006/42/EC and bears the CE marking. The European Agency for Safety and Health at Work in Spain offers guidelines and resources on the safe use of electrical handling equipment in the workplace.

We offer personalized, efficient, and fast after-sales service to address any needs that may arise with your equipment. Our spare parts department maintains one of the most comprehensive inventories in the industry, with very short delivery times. Electric stackers are available in our full range.

Ideal for typical loads between 1200 and 1500 kg that require a second level of shelving, warehouses with intensive use and full shifts, distribution logistics, the metallurgical industry and construction, facilities with an available battery charging point, and warehouses with two levels of shelving up to 2500 mm.

Not recommended for loads that do not usually exceed 1200 Kg (1200 Kg range is sufficient), occasional or sporadic use (manual stacker preferred), spaces without access to electrical power for charging, and warehouses with shelving higher than 2500 mm.
