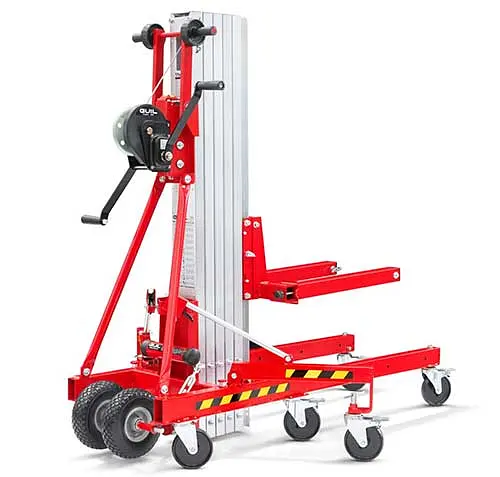

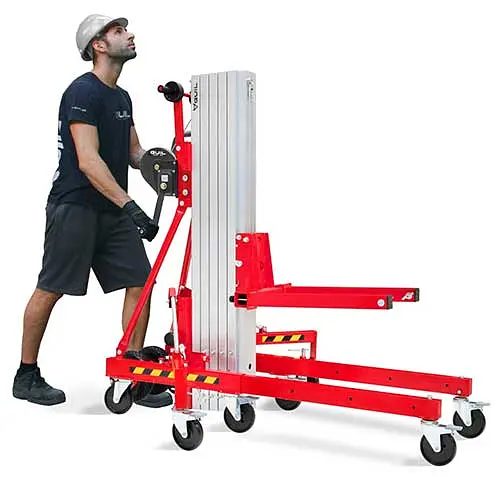

Front lift 250Kg Height 5100mm (TORO 50-460/05B)

Robust and lightweight elevator, certified for lifting loads up to 240 kg to a maximum height of 5.10 meters.

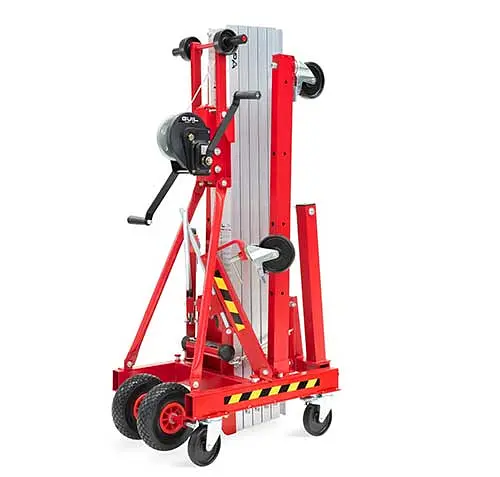

Its compact design, with a folded height of only 1.97 m, allows it to be transported in small vehicles.

The 250Kg Front Lift, 5100mm Height, equipped with 3 extendable aluminum profiles using pulley systems, is supplied with all the necessary components and accessories for its use: side stabilizers with leveler, forks, wheels for vertical and horizontal transport, etc.

Front lift 250Kg Height 5100mm - Special design

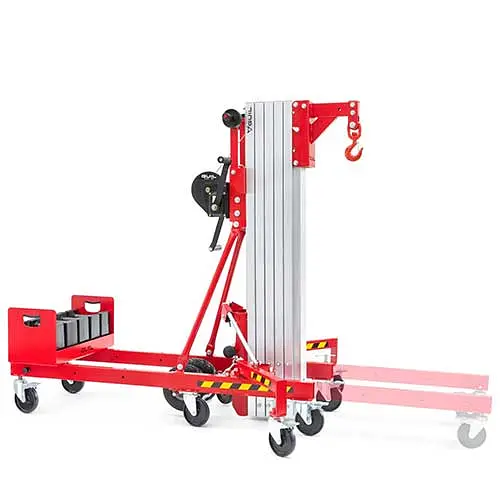

Its special design allows the legs to be positioned at the front or rear, enabling the tower to be moved closer to the wall when needed. These telescopic legs are equipped with leveling casters. (Note: Tray and counterweights available)

The TORO50-460/05B new 250Kg Height 5100mm Front Lift is supplied with a self-braking winch (ref. AL-KO 900) that prevents backward movement and stops the load at the desired height. When the winch crank is released, the brake acts and stops the load.

The winch is equipped with a detachable crank to reduce the risk of handling the lift and to reduce its transport and storage space.

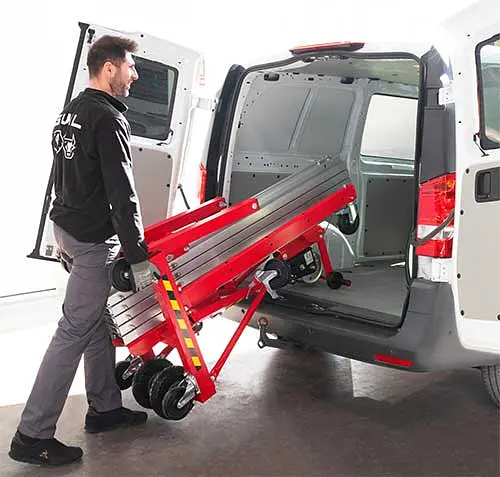

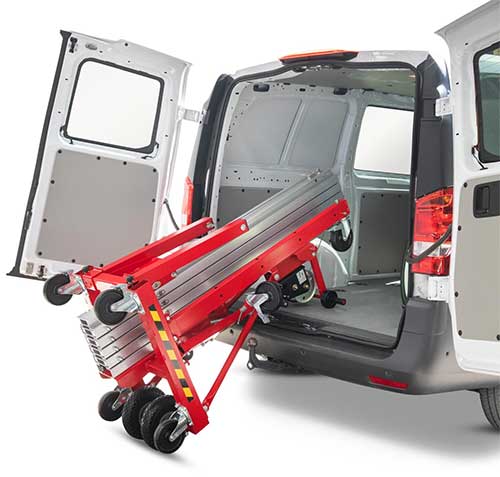

Thanks to the special system for loading it into vehicles, the comfortable positioning of the load to be lifted, and its quick assembly, this crane is considered one of the most functional on the market.

Note: GUIL has designed a practical and safe system that allows the TORO B-201/C crane to be lifted electrically (ref. ELECTRIC-B). This lifting system, not included in the lift, converts the manual TORO B-201/C lift into an electric lift.

Properties of the Front lift 250Kg Height 5100mm:

Extremely robust but very lightweight crane, designed for jobs where high load capacity is required. Maximum stability, safety, and resistance. Lift with a folded height of only 1.68 m. Manages by a single operator. Time savings > Increased productivity. Compact design for easy handling and storage. Access through corridors and single doors. TORO lifts can be used manually and electrically by acquiring the “ELECTRIC” system (not included). Quick and simple assembly without the need for tools. No loose parts. Removable telescopic legs to bring the lift close to the wall if needed. For fast, comfortable, and safe lifting of the load, the lift is equipped with a self-braking winch that prevents backsliding and stops the load at the desired height. The lift is equipped with magnetized neodymium safety pins, preventing loss. 100% Spanish manufacturing, in the facilities in L’Alcúdia (Valencia). Maximum functionality; at GUIL a wide range of accessories and adapters is manufactured to give the lift multiple uses. It can be used in industrial and domestic installations, both indoors and outdoors.

Lift FULLY EQUIPPED. It is supplied with all the components and accessories necessary for use (Note: ACT ref. adapters not included). Supplied as standard with: folding side stabilizers with wheels and leveling spindle. Adjustable, removable and reversible forks. Detachable telescopic legs with wheels and leveling spindle. 12 wheels for transport in vertical and horizontal position, and loading into vehicles.

Safety:

The manufacture of the Front lift 250Kg Height 5100mm is carried out with the most advanced technology, carefully selecting the materials used and controlling the quality of all its components during manufacture. This guarantees maximum safety and firmness, complying at all times with the requirements of solidity, resistance, firmness and maneuverability necessary for safe load lifting. The TORO B-201/C lifts are equipped with two safety systems that guarantee maximum reliability during the lifting and lowering of loads:

Self-braking winch Ref. AL-KO 900

The self-braking system of the winch prevents backward movement and stops the load at the desired height. Once the desired height is reached, when the winch lever stops being operated, its braking mechanism begins to act, preventing backward movement and stopping the load at the desired height.

IPB System

Internal Pendular Brake System (IPB): extra safety system composed of an internal pendular mechanism, which is activated automatically in each section when it suffers a small falling speed and is unlocked by activating a trigger on each section (MSU System).

MSU System

Section unlocking system (MSU): each section is equipped with a trigger that allows the sections to be unlocked when the pendular brake system has acted.

The TORO B-201/C load lifts comply with the requirements of the Safety and Quality System according to the European Regulations included in Standard 2006/42/CE. VERY IMPORTANT: TORO cranes are not manufactured for lifting people. For outdoor use, the lift must be secured with cables, slings, chains, etc. to avoid any unexpected movement due to weather conditions.

If more information is needed, contact Manupack and information will be provided without any obligation.

Utilities

Ideal for: Mounting at medium-high height. Technical and logistics industry. Installation of equipment and panels. Frequent industrial work.

Not recommended for: Structural overload. Use without properly positioned stabilizers. Uncontrolled environments.
